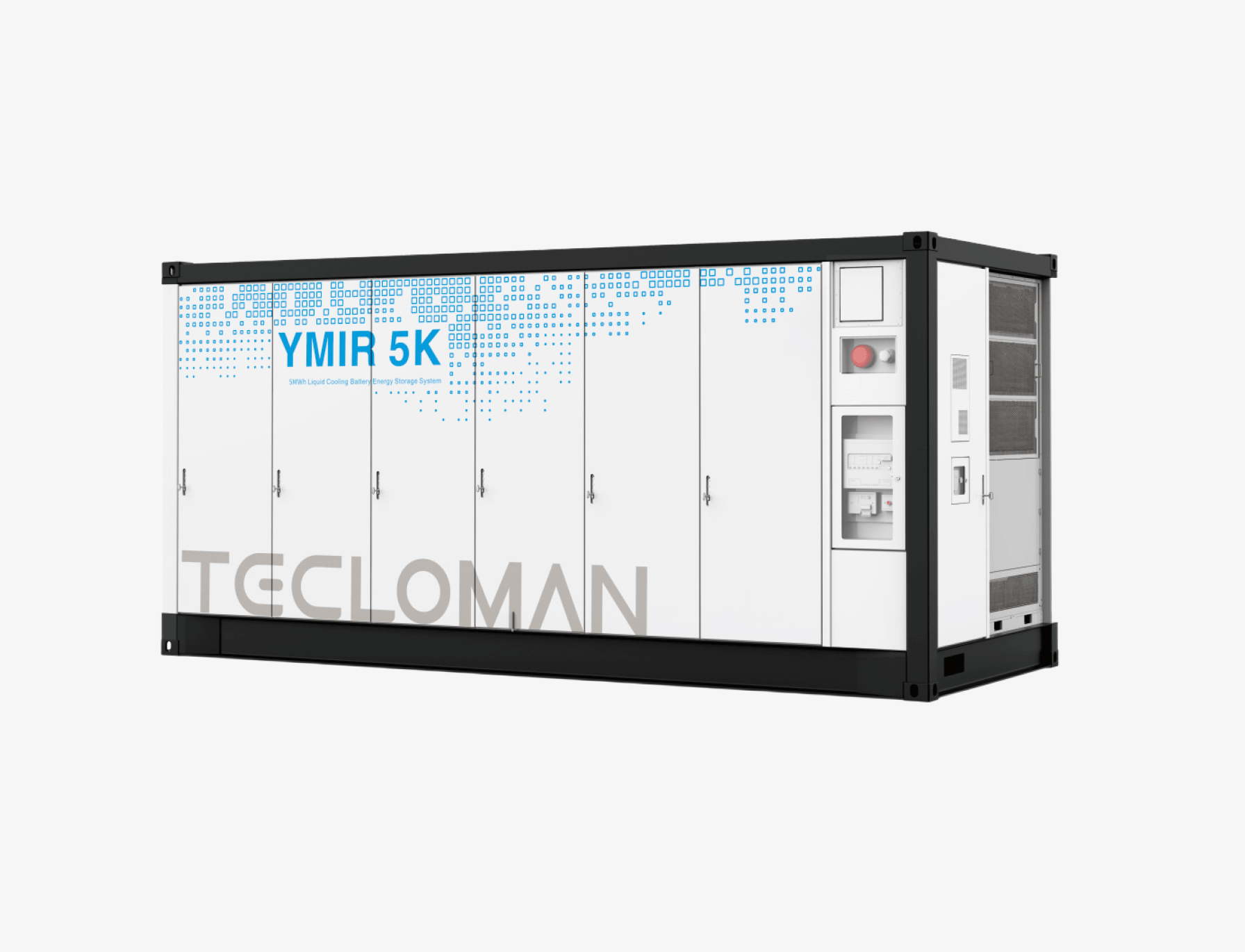

Ymir 5K

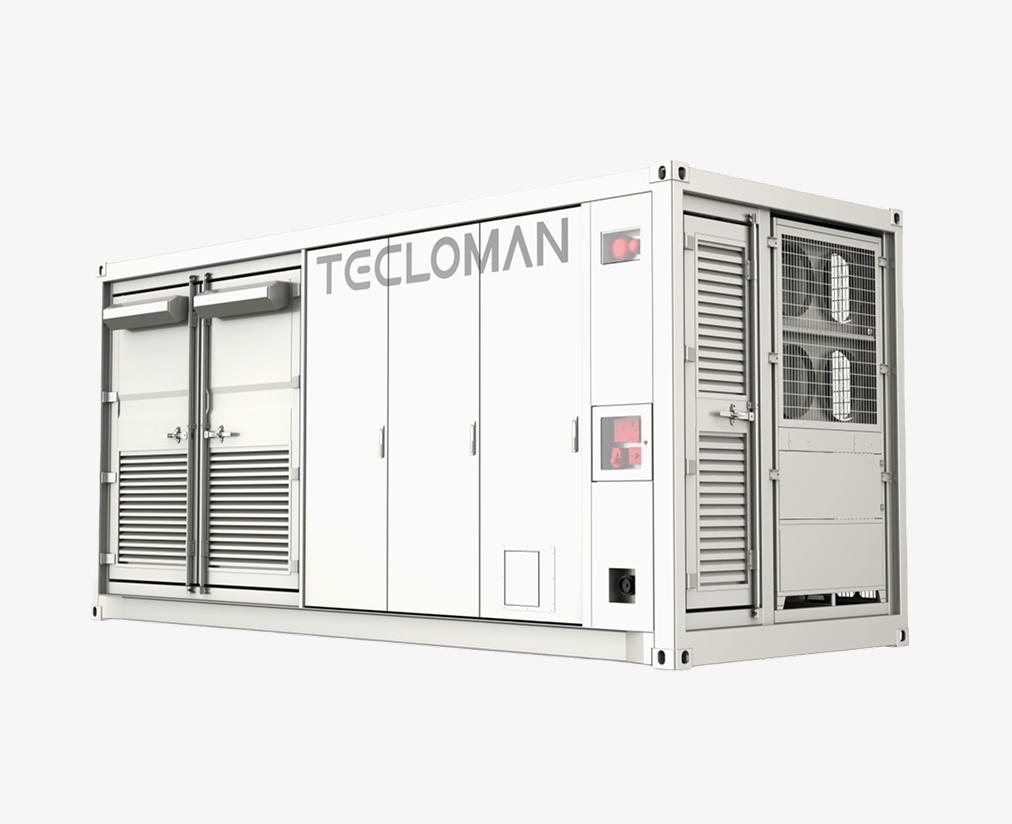

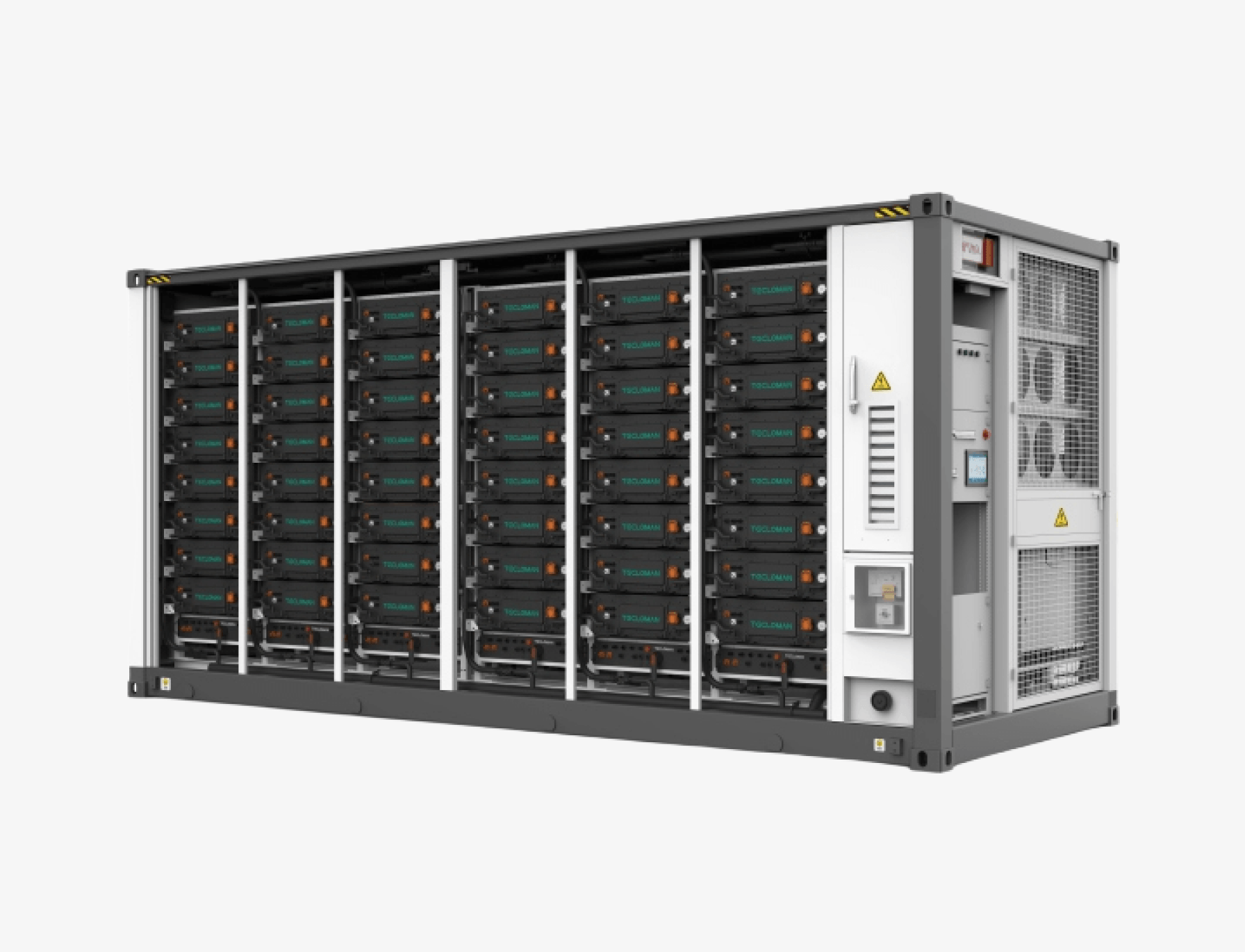

The liquid-cooled prefabricated energy storage battery systemis a high-capacity battery storage solutionfeaturing a standardized design and flexible configuration. The systemintegrates energy storage batteries, anadvanced Battery Management System (BMS), power distribution, temperature control, and fre protectioninto asingle unit, and can be used in conjunction with mainstream energy storage converters (PCS) for a wide range ofapplications. The new generation 5 MWh liquid -cooled product features a highly integrated structural design,significantly reducing footprint and shortening installation time for users.
Model | TBAT-5016-15-L |
Container Size | 20 ft |
Voltage Class | 1500V |
Battery Chemistry | Lithium Iron Phosphate (LFP) |
Cell Capacity | 314Ah |
Module Configuration | 1P104S |
Modules per Cluster | 4 |
Nominal Cell Voltage | 3.6V |
Minimum Cell Voltage | 2.8V |
System Configuration | 1P416S |
Number of Clusters | 12 |
Nominal Voltage | 1331.2V |
Voltage Range | 1164.8-1497.6V |
Nominal Capacity | 3768Ah |
Nominal Energy | 5.016MWh |
Charge/Discharge Rate | 0.5C |
Charge/Discharge Current | 1884A |
Operating Temperature | -25-50℃ |
Cooling Method | Liquid cooling |
Relative Humidity | ≤95% RH, non-condensing |
Operating Altitude | ≤5000 m (customized above 3000 m) |
Ingress Protection | IP54 |
Corrosion Protection | C3 |
Fire Protection | Heptafluoropropane / Aerosol |
Weight | 43T |
Dimensions (W × D × H) | 6058×2438×2896mm |
