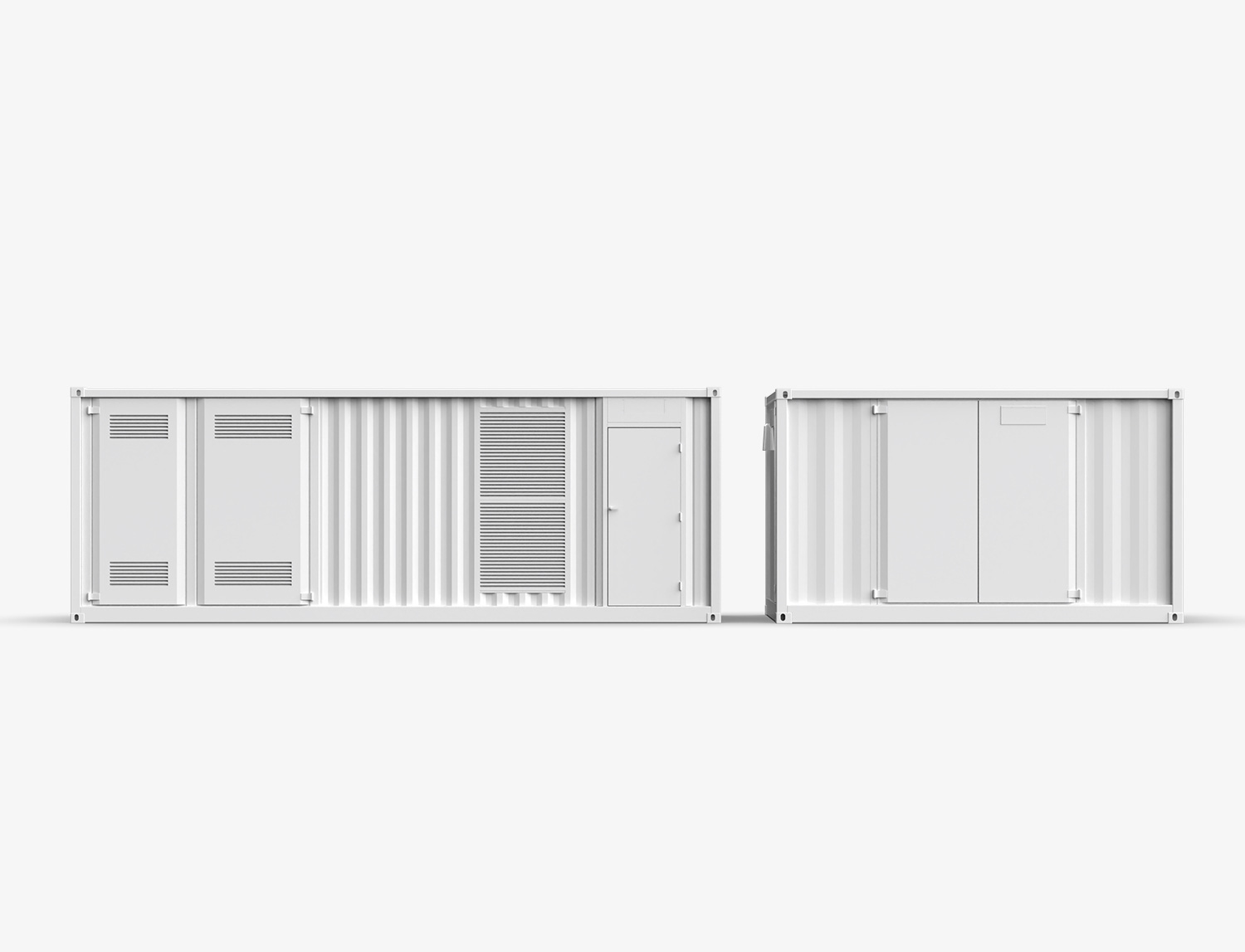

IDC Power Supply

Categories:
IDC BESS
Tag:
C&I BESS IDC Utility-scale

The technological heart of IDC power supply lies in its ability to decouple common electricalloadcurrent quality issues from sporadic grid voltage quality issues.

DataSheet
Parameters

Model

Tl DC-500/0.4

AC input

AC380V(-10%~+10%)

Rated capacity

500kVA

Wiring mode

TN-S, three-phase five-wire

Operation frequency

50Hz±5Hz

Power factor

>0.98

Harmonic distortion

THDi<3%

Steady-state voltage error

<1%(three-phase balanced load)

Output Frequency

50±0.5Hz

Phase voltage distortion THDv

<I %(linear load);<5%(nonlinear load, load current peak ratio CF> 3)

Peak factor

CF≥3:1

Three phase difference

120 ± 1 ° (balanced or unbalanced load)

100%Unbalance of Unbalanced Load Voltage

<1%

No-load voltage stabilization accuracy

±2%

Overload capability

1.05~ 1.1 times the rated load, lmin to bypass; higher than 1.5 times the rated load, switch to bypass immediately.

Number of parallel machines

Max. 5 parallel

Efficiency

≥ 98%(load rate ≤ 30%), ≥ 99%(load rate> 50%)

DC voltage range

230V-780V

Other parameters

Operating Temperature

-5°C~+40°C

Storage and transportation temperature

-25°C~+55°C

Relative humidity

≤90%RH, non-condensing

Highest Altitude

4000 m (over 2000 m, it will operate in derating)

Noise

<65dB

Display mode

LCD + Indicator

Communication Interface

RS485/Modbus/Electrical Master Protocol

Protection Grade

IP20
