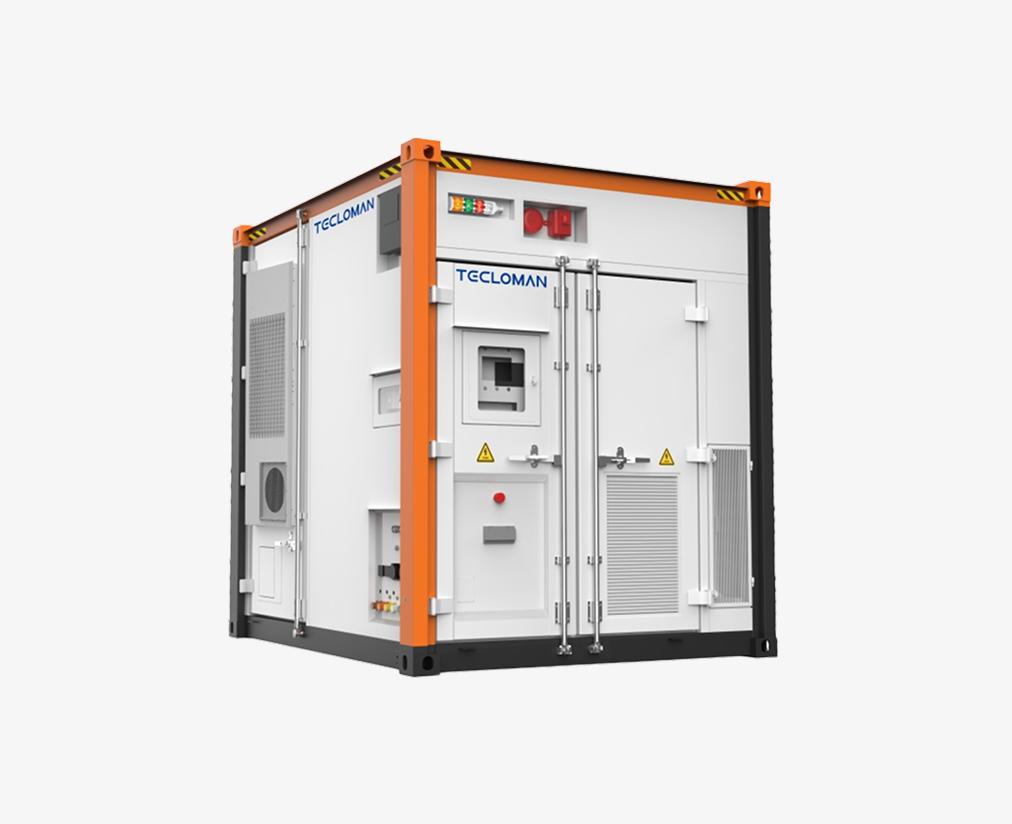

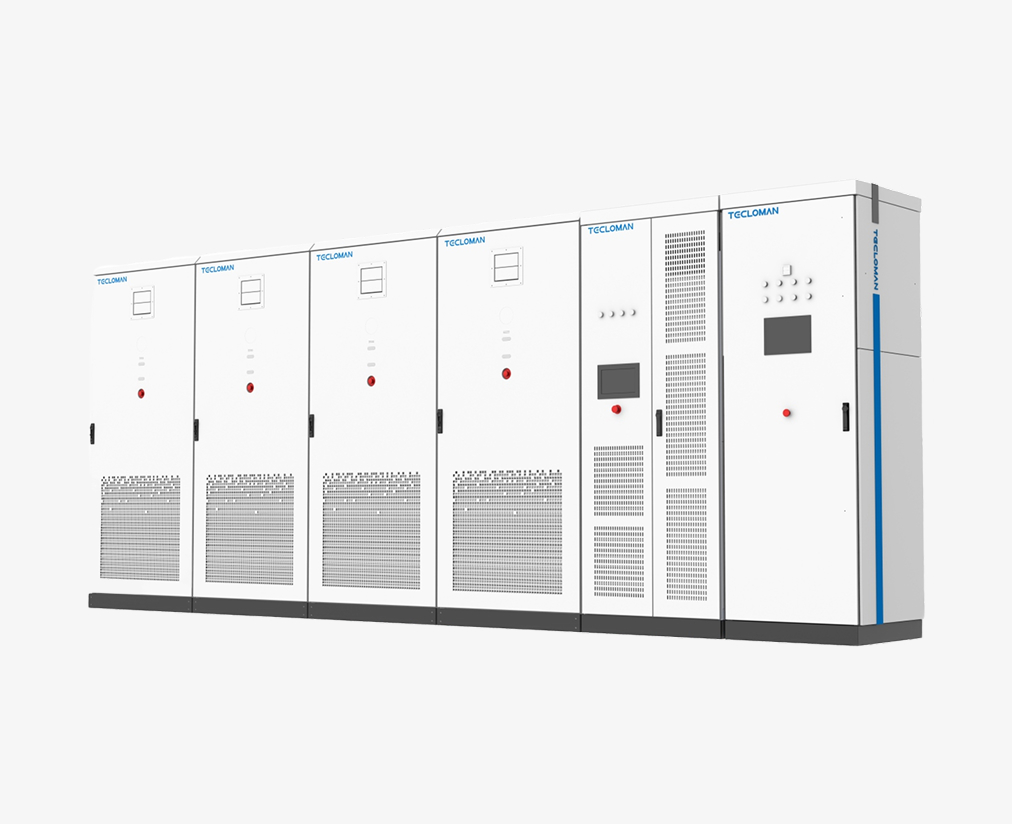

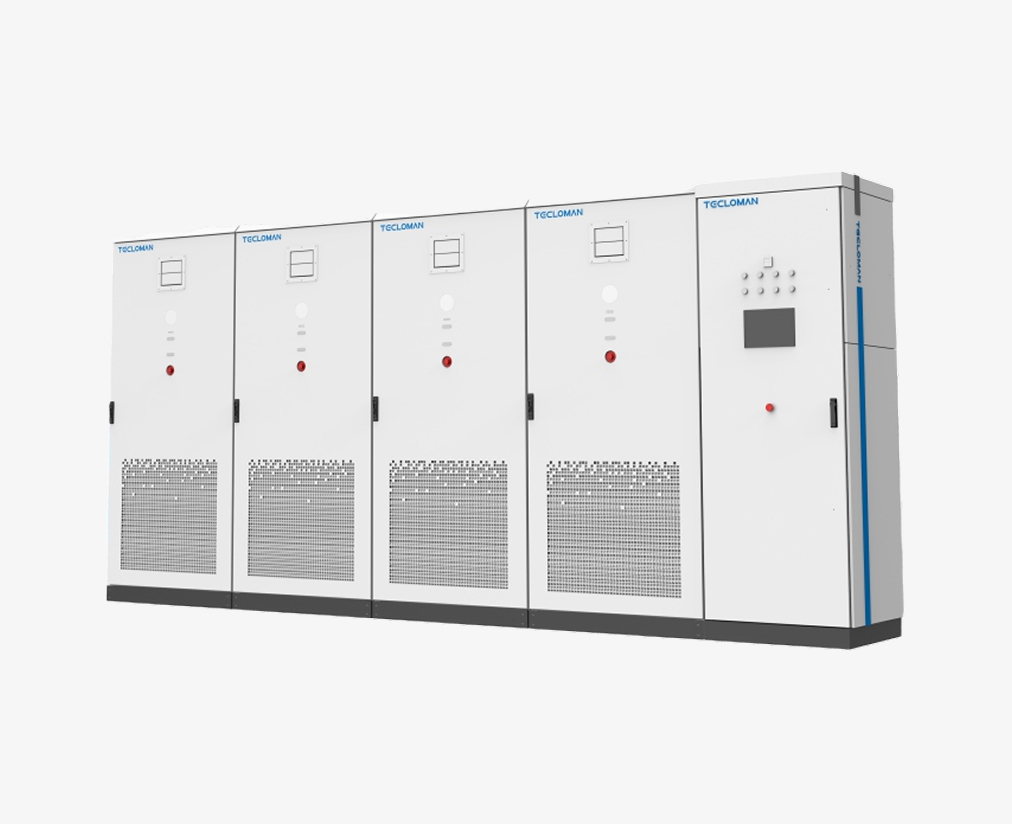

1500V PCS-MV Substation
Reasonable and efficient layout, improve space utilizationIntegration of secondary circuit, unified measurement, protection and communication
“Change” “Boost” – body design, to achieve integrated product delivery
Tri-level topology energy storage converter with 99.03% efficiency
Boost application type covers 35kV and below voltage levelSupport 110% overload, 50C no derating, high system stability
Model | TBVS-2500K-TH | TBVS-2750K-TH | TBVS-3150K-TH | TBVS-3450K-TH | TBVS-5000K-TH | |
DC | Maximum DC voltage | 1500V | ||||
DC voltage range | 800 ~ 1500V | 800～1500V | 915～1500V | 1000～1500V | 1000～1500V | |
Maximum DC current | 3500A | 3858A | 3864A | 3872A | 6000A | |
Grid-connected output | Rated Power | 2500kW | 2750kW | 3150kW | 3450kW | 5000kW |
Maximum capacity | 2750kVA | 3025kVA | 3465kVA | 3795kVA | 6000kVA | |
Rated Voltage | 550V | 550V | 630V | 690V | 690V | |
Voltage range | -15%~ 10%(Range can be set) | |||||
Rated Frequency | 50Hz/60Hz | |||||
Maximum output current | 3176A | 5020A | ||||
Power factor | -1(overrun) ~ 1(lag) | |||||
THDI | <3%(rated power) | |||||
Off-grid output | Rated Voltage | 550V | 550V | 630V | 690V | 690V |
Maximum output current | 3176A | 5020A | ||||
THDU | <3%(linear load) | |||||
Rated Frequency | 50Hz/60Hz | |||||
Efficiency | Maximum efficiency | 99.03% | ||||
Transformer parameters | Rated capacity | 2500kVA | 2750kVA | 3150kVA | 3450kVA | 5000kVA |
Voltage Ratio | 0.55/(6~35)kV | 0.55/(6~35)kV | 0.63/(6~35)kV | 0.69/(6~35)kV | 0.69/(6~35)kV | |
Transformer Type | Dry transformer/oil transformer | |||||
Basic parameters | Protection Grade | IP54 | ||||
Operation ambient temperature | -15 "C~50'C(>50C derating operation) | |||||
Relative humidity | ≤90%RH, without condensation | |||||
Cooling | Forced air | |||||
Max. Altitude | 4000 m (> 2000 m derating) | |||||
Communication Interface | RS485 /Ethernet | |||||
Communication protocol | Modbus-RTU / Modbus-TCP/IEC61850/IEC104 | |||||
