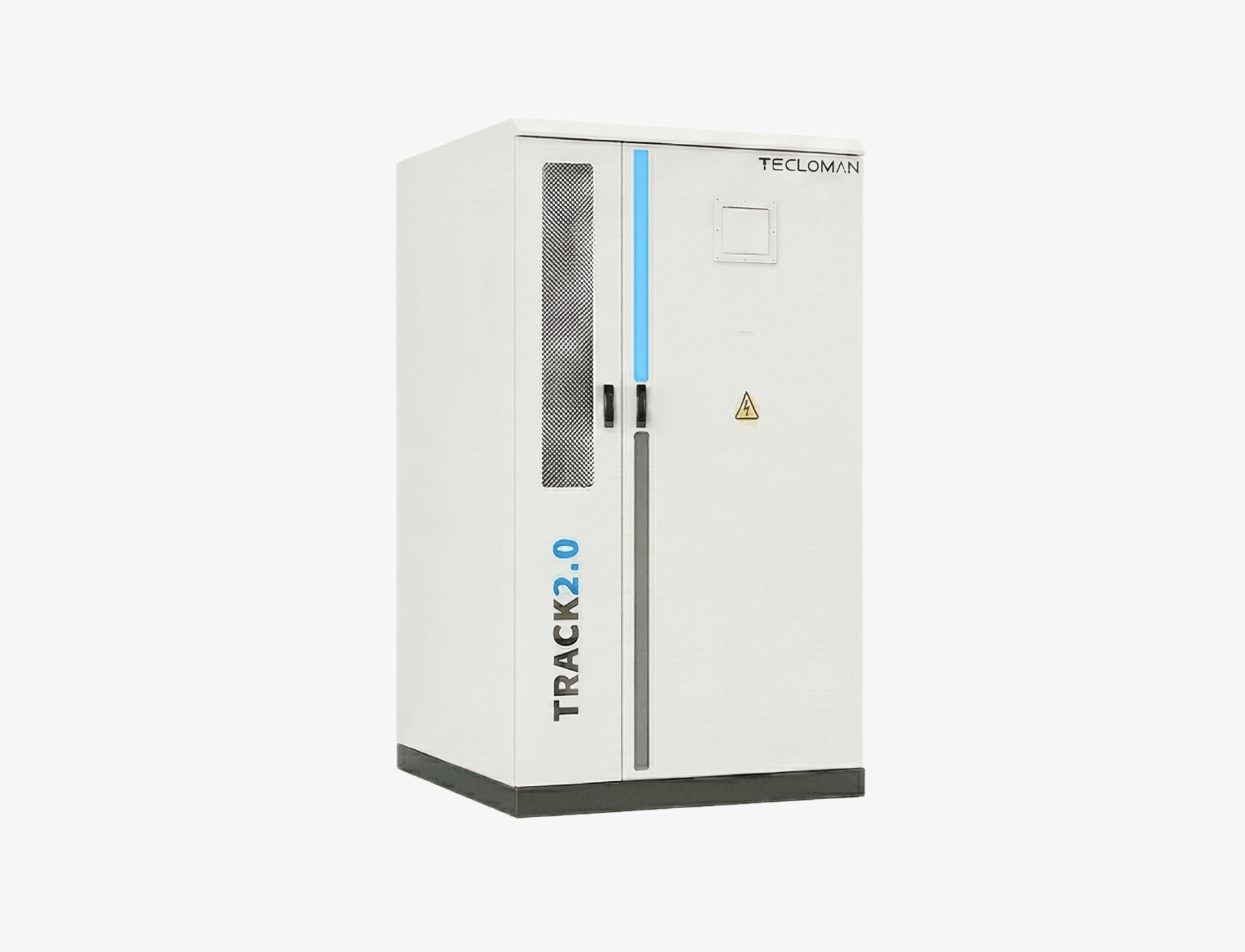

Track2.0
The outdoorliquid-cooled battery cabinet, based onan "All-in-One" modular integrated architecture, integrates battery clusters (to 8 PACKs).
BMs, liquid cooling air conditioner,.fre protection, and thermal management systemsinto a single standardizedcabinet.
It can be connectedindividually orusedin parallel with PCS, featuring a small footprint, highreliability, easy installation,fexible scalability. convenient maintenance, and high system effciency.Itis suitable forvarious application scenarios suchasmicrogrids, emergency backup power, peak shaving and valley filing, and distributed renewable energy integration.
Model | Track-499-630-Y | Track-665-630-Y |
Cell type | LFP 3.2V/315Ah | |
Configuration | 2P156S | 2P208S |
Nominal capacity | 630Ah | 630Ah |
Nominal power | 314kWh | 419kWh |
Nominal voltage | 499.2VDC | 665.6VDC |
Operating Voltage Range | 436.8-561.6VDC | 582.4-748.8VDC |
Nominal charge/discharge current | 315A | |
Max. charge/discharge current | 400A | |
Low voltage power supply mode | 220V-50/60HZ 20A Non-UPS power supply | |
Charge/discharge efficiency | ≥95% without auxiliary consumption | |
Cycle life | ≥6000 Cycles | |
Operating Temperature | Charging temperature: 0-55°C, Discharging temperature: -20-55°C | |
Recommended operating temperature | 15°C-40°C | |
Storage temperature | Within one month: -30°C-+55°C, 90%RH Max Within three months: -10°C-+45°C, 90%RH Max Recommended storage temperature: -10°C-+25°C, 85%RH Max | |
Altitude | ≤4000m (Derated above 2000m) | |
Thermal management mode | Liquid-cooled | |
Equalisation | Active / Passive | |
Relative humidity | 5-90%RH | |
IP grade | IP54 | |
Dimension W×D×H | 1300×1300×2320mm (±5mm) | |
Weight | ≤3098kg | ≤3814kg |
Communication mode | Modbus / CAN2.0 / RS485 | |
Certificates | IEC62477-1, IEC61000-6-2/4, IEC62619, UL1973, UI9540A, UN38.3, under certification | |
