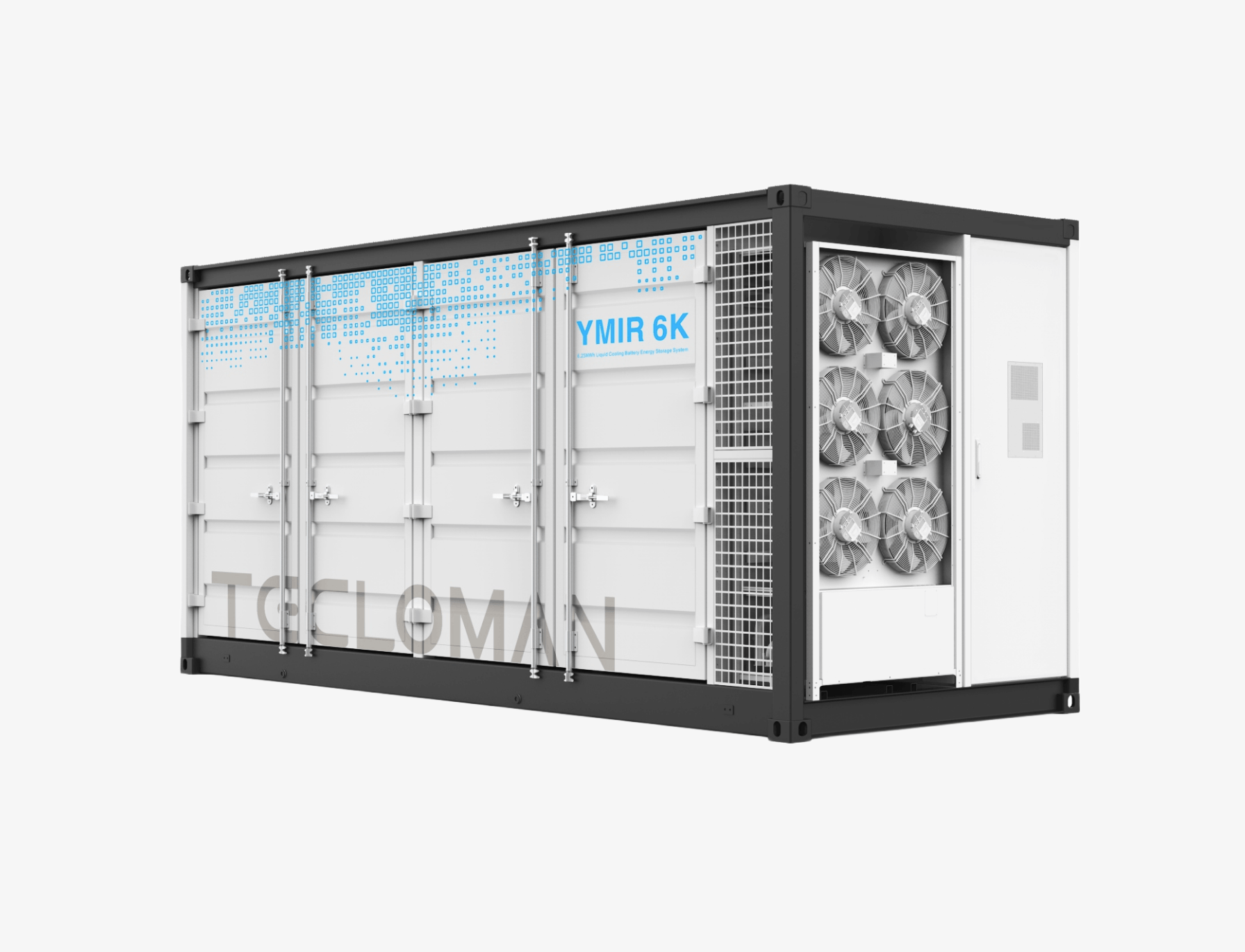

Ymir6K Plus

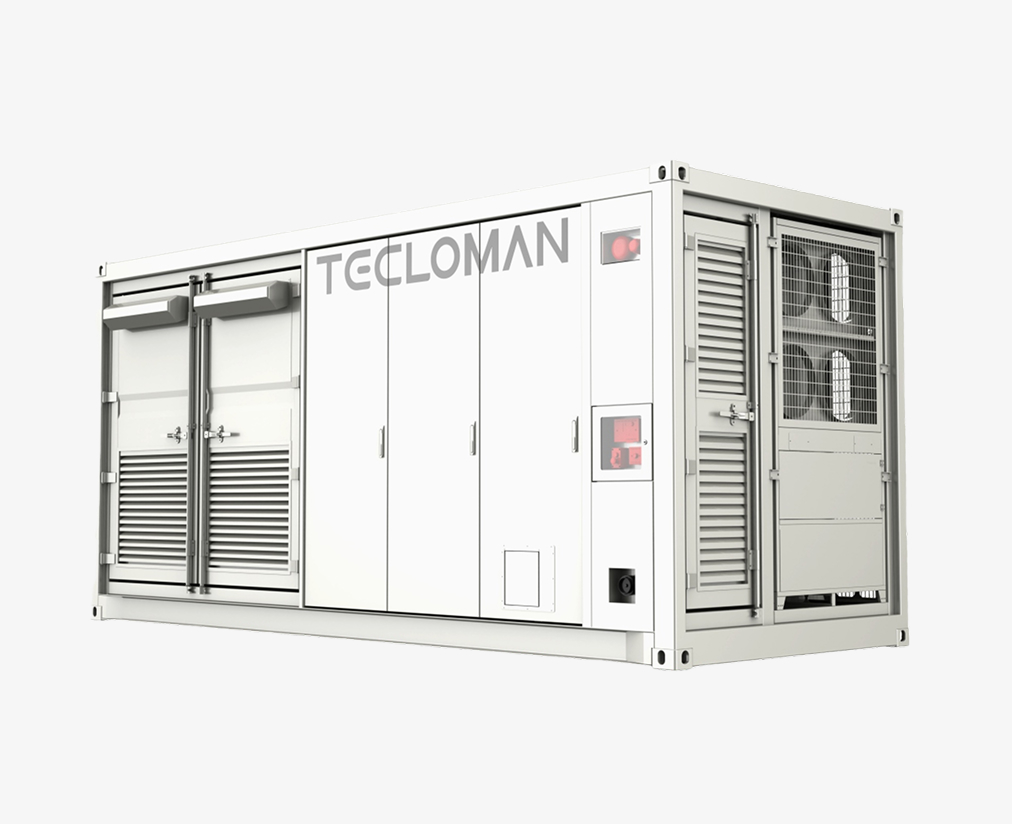

TESS-1800-6250-LRE-AC is an energy storage system, and more importantly, a standardizedintegrated AC/DC intelligent power unit. Inside a standard 20-foot container, we haveunprecedentedly integrated a 6.25MWh battery system with a 1.8MW PCS inverter, creating theultimate product form of "One Container, One Station". It achieves built-in full functionality from DCenergy storage to AC grid connection, thoroughly simplifying the traditionally complex powerstation integration work into on-site connection and commissioning, bringing unprecedenteddeployment speed and investment efficiency to customers.
Model | TESS-1800-6250-LRE-AC |
DC Side Parameters | |
Cell Type | LFP-587Ah |

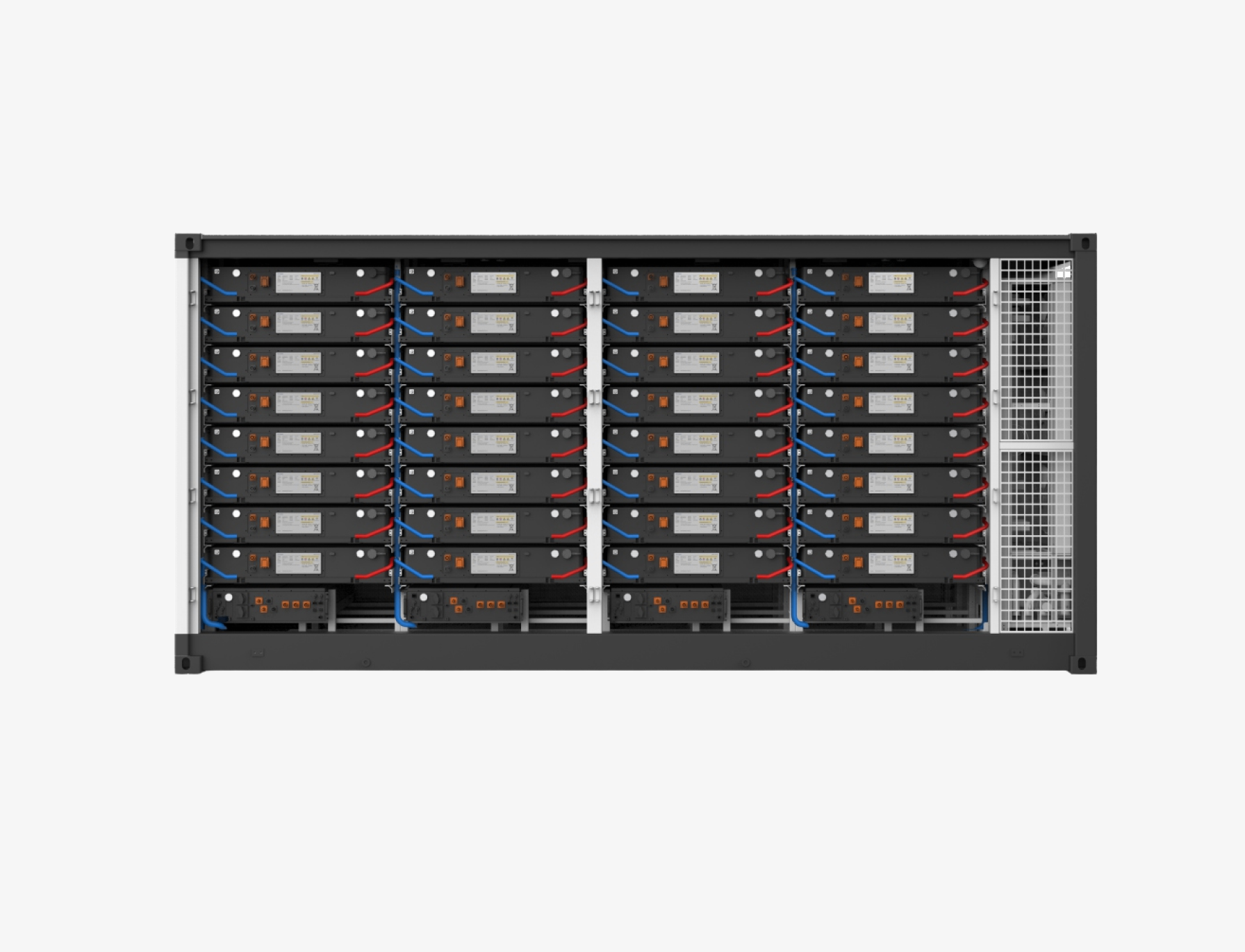

Module Configuration | 8P416S |
Charge/discharge Duration | 4h |
Rated Power | 1800KW |
Rated Energy | 6.25MWh |
Rated Voltage | 1331.2Vdc |
Operating Voltage Range | 1123.2-1497.6Vdc |
AC Side Parameters | |
Rated Power | 450kW*4 |
Grid Voltage Range | 690V(-15%-10%) |
Grid Frequency Range | 50Hz/60Hz±2.5Hz |
Current Harmonics | ≤3%(Full Load) |
Power Factor | -0.99-+0.99 |
Other Parameters | |
IP Rating | CONTAINER IP55 |
Cooling Method | Liquid Cooling |
Balancing Method | Active Balancing / Passive Balancing |
Fire Suppression System | Container-level Aerosol |
Auxiliary Power Supply | 480VAC/60HZ |
Cycle Life | ≥ 6000 cycles (80%EOL) |
Operating Temperature | -30°C - +55°C |
Operating Humidity | 0-95%RH, Non-condensing |
Operating Altitude | ≤4000m(Derating ≤2000m) |
Dimensions(w×d×h) | 6058*2438*2896 (W*D*H) mm |
Weight | ≤50t |
Communication Interface | Ethernet/CAN/RS485 |
