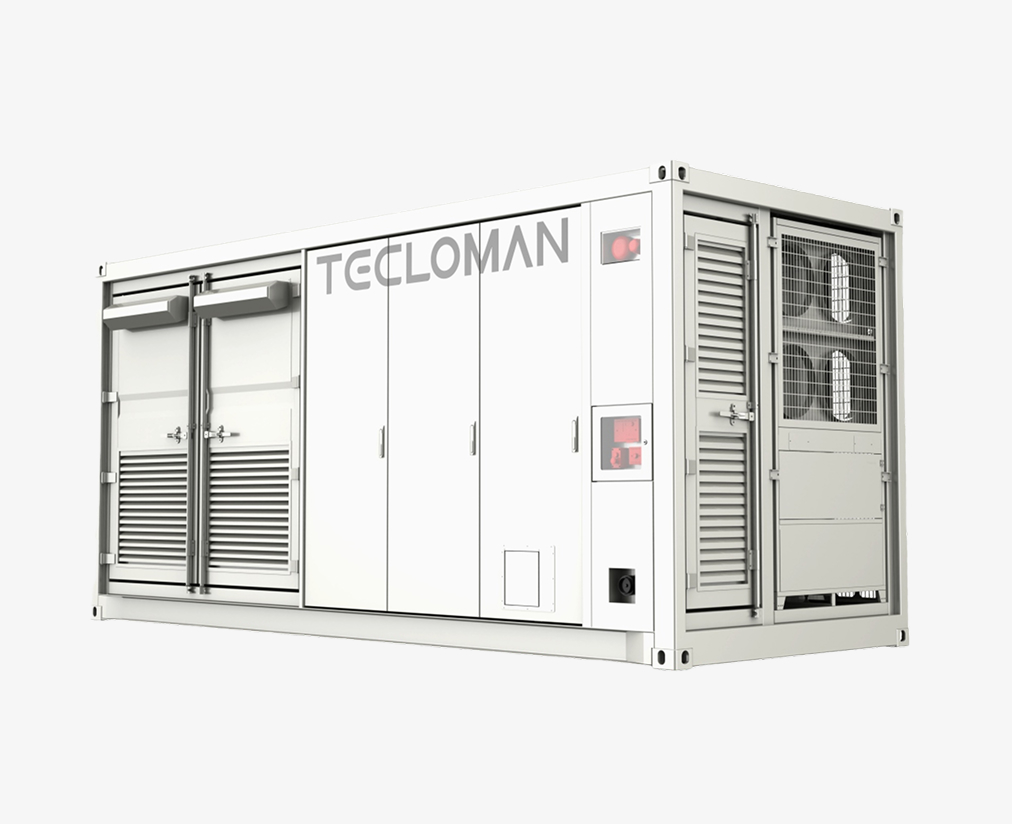

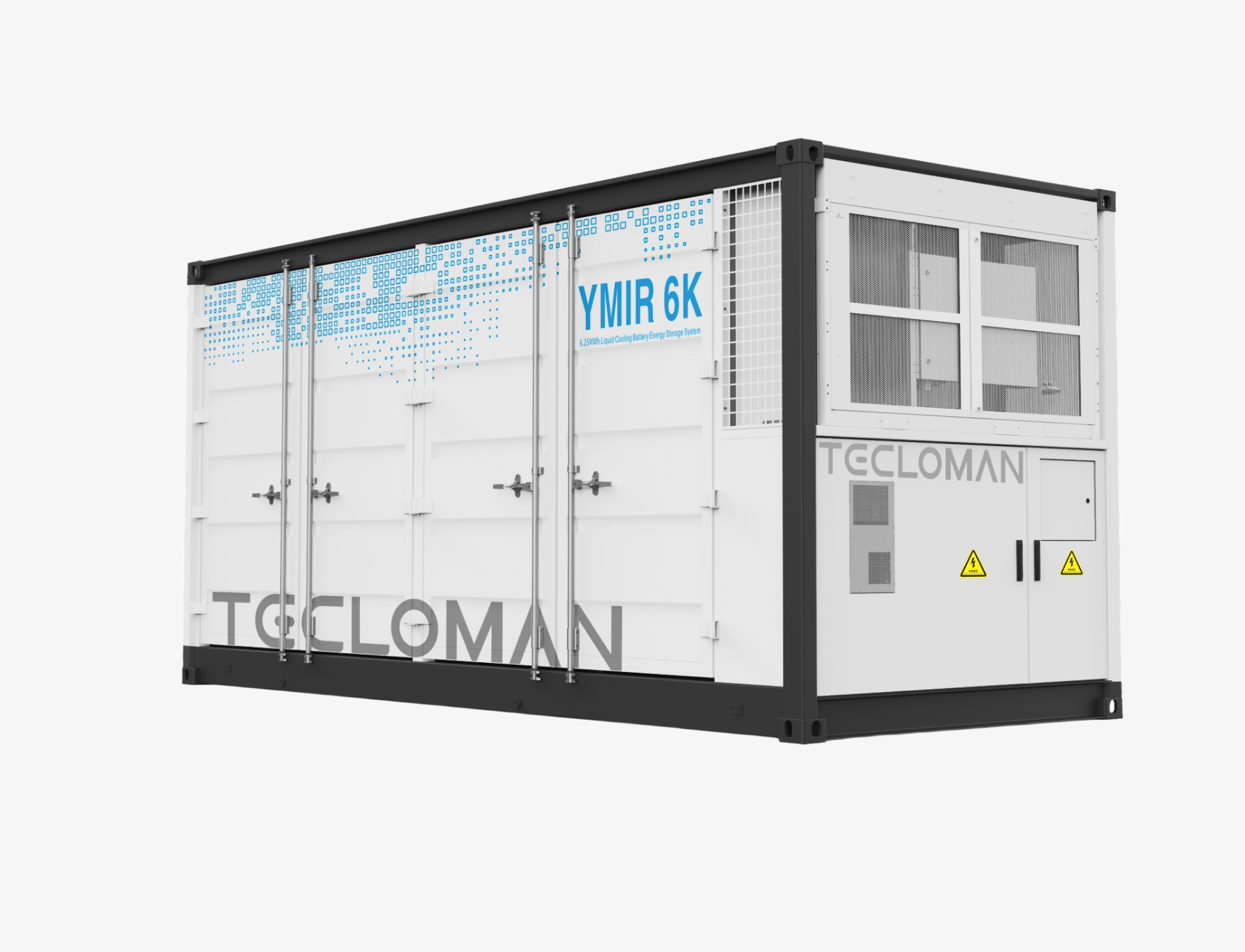

Ymir 6K
The 6.25MWhliquid-cooled containeris a groundbreaking product that sets a newindustry benchmark for energy density. Withinastandard 20-foot container, we have achieved anultra-high storage capacity of 6.25MWh. Powered by top-tier cells, aninovativearchitecture,and comprehensive safety design. it delivers the utimate solution for customers-offering a smaller footprint, fasterdeployment, and higherreturns.
Model | TESS-1800-6250-LRE | TESS-3125-6250-LRE |
Basic Parameters | ||
Cell Type | LFP-587Ah | |
Configuration | 8P416S | |
Convergence Method | 8 clusters to 1 bus / 8 clusters to 2 buses | |
Charge/Discharge Duration | 4h | 2h |
Rated Power | 1562KW | 3125KW |
Rated Energy | 6.25MWh | |
Rated Voltage | 1331.2VDC | |
Operating Voltage Range | 1123.2-1497.6VDC | |
IP Rating | Container/P55 | |
Cooling Method | Liquid Cooling | |
Balancing Method | Active Balancing / Passive Balancing | |
Fire Suppression System | Cabin-grade Aerosol | |
Auxiliary Power Supply | 480VAC/60Hz | |
Cycle Life | ≥ 6000 cycles 80%EOL | |
Operating Temperature | -30℃~+55℃ | |
Operating Humidity | 0~95%RH, non-condensing | |
Altitude | Up to 4,000 m (derating above 2,000 m) | |
Dimensions(WxDxH) | 6058*2438*2896mm | |
Weight | ≤50T | |
Communication Interface | Ethernet/CAN/RS485 | |
