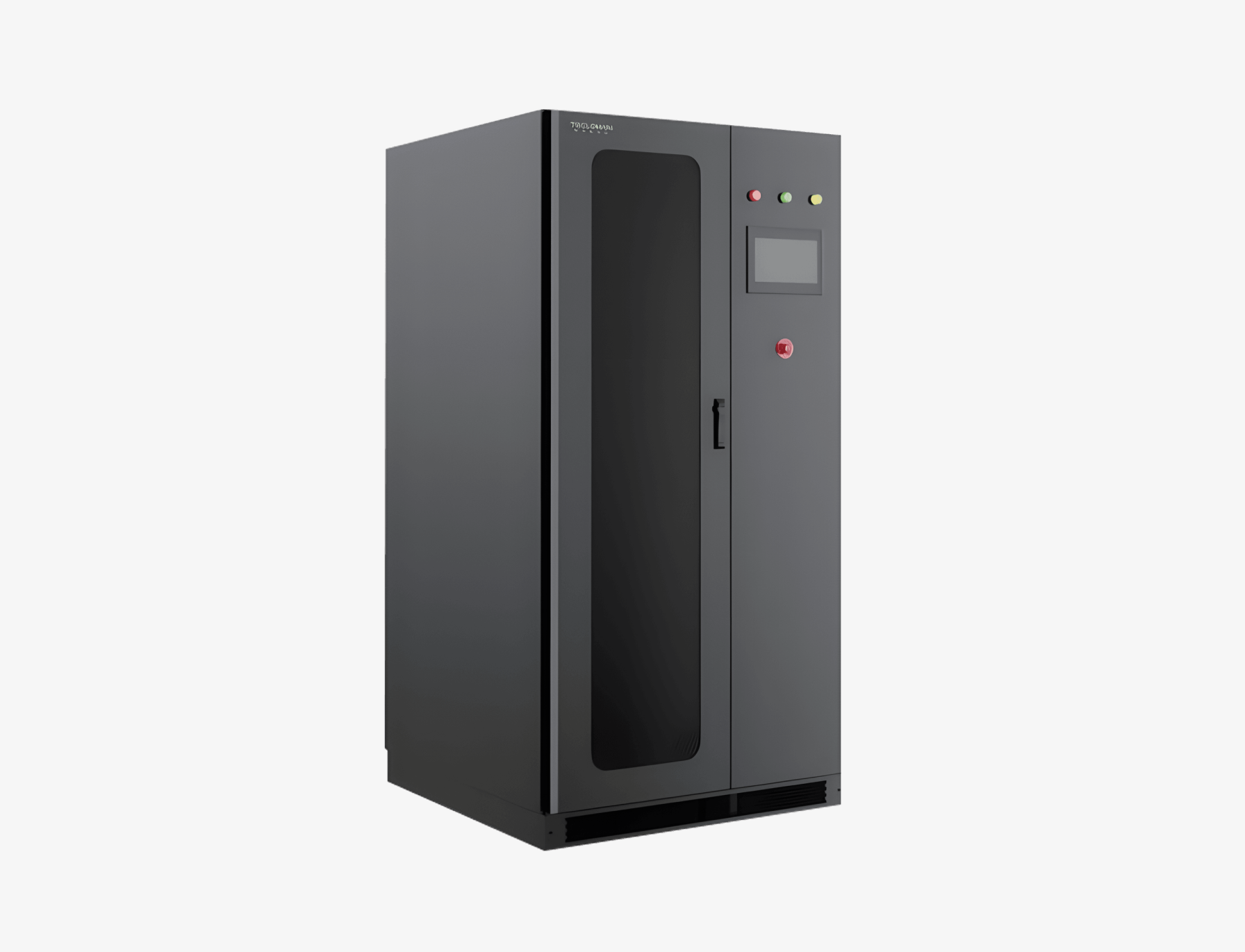

Model

TPCS-500

Battery Interface Parameters

Operating voltage range

650V~800V

Single channel input maximumcurrent

154A

Maximum number ofchannels

5

Grid-connected AC parameter

Output line system

3W+N+PE/3W+PE

Rated Power

500KW

Rated Voltage

400V

ACvoltage range

85%U~110%U

Rated current

721A

Rated Frequency

50Hz/60Hz

Frequency range

±5Hz

Maxmuim Current Total Harmonic Distortion

≤3%

Power factor

-0.99(advance)~0.99 (lag)

Reactive power controllable range

-100%~100%

Maximum overload capacity

110%overload (long-term),120%overload (Imin)

Isolation method

No/isolation transformer(optional)

Off-grid AC parameter

AC rated voltage

400V

AC rated frequency

50Hz/60Hz

Maxmuim Voltage Total Harmonic Distortion

≤3%(linear load)

Load capacity ofunbalance load

100%

Voltage variation range

<3%U

Overload capability

110%过载overload (long-term),120%overload (1min)

Gird-connection and offswitch mode

Gird-connection and offswitch capacity

Planned off-gric

Passiveoff-grid switching mode and switchingtime

<10ms with switching cabinet

Maximum efficiency

98.7%

Basic parameters

Dimensions (WXHXD)

1000mm×2012mm×1000mm

Weight

800kg

Permissible operating temperature range

-20℃~55℃(over 45℃,it will operate in derating)

Cooling method

Forced air cooling

Protection Grade

IP20

Relative humidity

≤95%RH,non-condensing

Highest Altitude

4000m(over 2000m,it will operate in derating)

Self power consumption in shutdown

<100W

HMI

Touch Screen

Noise

<75db

Communication Interface

RS485,Ethernet,Can

Support protocols

Modbus TCP、Modbus RTU
